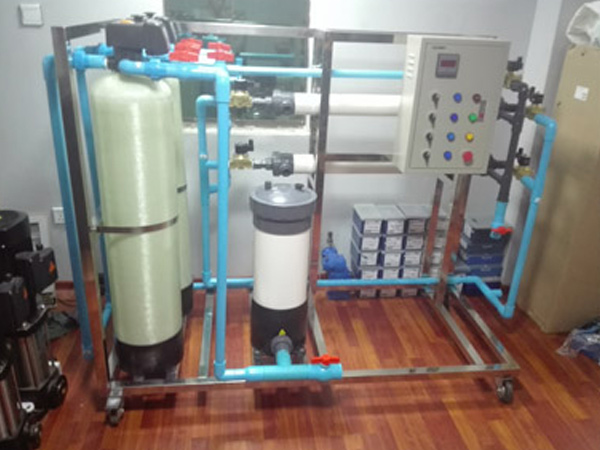

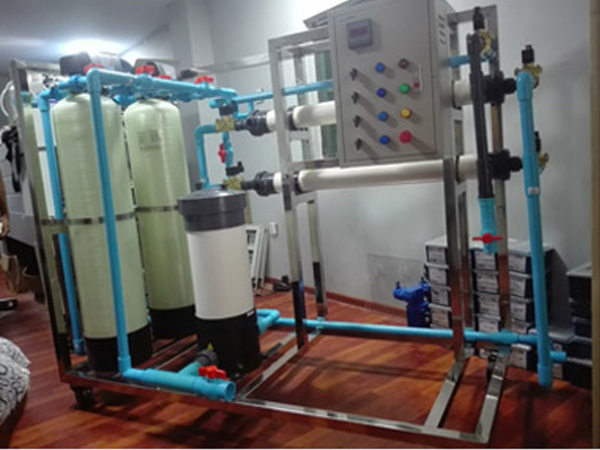

Use for Water Treatment Solution. Ultra-Filter System removes particles, bacteria, viruses and other impurities larger than 0.01 micron .Include Auto Backwash System and Timer Base Control Panel. LKT supplies full line of standard and customizable UF System. Water Quality Control is Customizable and User Optional.
Overview
Include Automatic Multiport Valve and UF Auto Backwash and Flush Control System. Two media filtration unit and 5 sets of micro filter include.
- Flow Rate - 1000LPH
- Operation Type - Fully Auto (Emergency On/Off and Manual Control Function include)
- Power - 220V , 50 Hz , 372W
- Control Type - Relay and Timer or PLC
- Filtration Stage - 4 Stage Filtration
- Removing Contaminate - Particulate or colloidal mater (dirt, silt, clay, etc.), organics (humid/ folic acids, etc.), Microorganisms (bacteria, etc.), iron, chlorine and some other contaminate.
Components

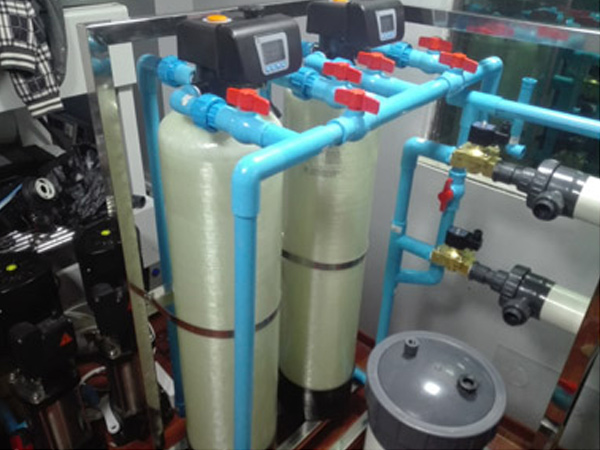

1st Stage Media Filter
- Quantity - 1 Set
- Shape - Vertical Cylindrical
- Diameter - 13" (33 cm)
- Height - 54"(137 cm)
- Capacity per Unit - 1000 L/hr
- Design Pressure - 5 bar
- Material - FRP Polyglass
- Control - 3 Step auto working System
- Back Wash - By Water
- Filter Media - Grand Sand : 75 Liter/set
2nd Stage Media Filter
- Quantity - 1 Set
- Shape - Vertical Cylindrical
- Diameter - 13"(33 cm)
- Height - 54"(137 cm)
- Capacity per Unit - 1000 L/h
- Design Pressure - 5 bar
- Material - FRP Polyglass
- Control - 3 Step auto working System
- Back Wash - By Water
- Filter Media - GAC : 75 liter/set
5 Unit 5 Micro Housing and Filter
- Quantity - 1 Set (include 5 set Micro Filter)
- No of Vessel - 5
- Material - PVC
- Accessories - Pressure Gauge
Feed Pump (Submersible)
- Quantity - 1 Set
- Material - 304 Steel
- Power - 220V, 50Hz, 372W (Single Phase)
- Brand - LEO
- Accessories - check valve, pressure switch and pressure gauge
UF (Ultra Filteration Unit)
- Number of Unit : 2 sets
- Membrane Material : Vinyl Polymer
- Inner and outer diameters of Hollow - diameter : 1.0mm/1.6mm
- Dimensions of membrane Module : 90 x 1175 mm
- Initial flux : 1500 l/H
- External Shape : Hollow Fiber
- Membrane fiber Type : Incite-out or outside in
- Area of membrane module : 4.2 m2
- Applicable Temperature : 5 - 45 Degree C
- Molecular Weight cut – off (MWCO) : 100.000 Daltons
- Characteristics of membrane : Hydrophilic double - compact layers Stricter
- Pre- filtration : 50 - 150 Um
- Max turbidity of inlet water : < 15NTU
- Filtration : Cross flow Filtration or dead end filtration
- Max inlet water Pressure : 0.40 Mpa
- Max pressure difference of Transmembrane : 0.2 Mpa
- Applicable pH range : 1 - 12
- Tolerable continuous Residual chlorine : 100 PPM
- Tolerable interval Residual Chlorine : 200 PPM
Specification
1st Stage Media Filter
- Quantity - 1 Set
- Shape - Vertical Cylindrical
- Diameter - 13" (33 cm)
- Height - 54"(137 cm)
- Capacity per Unit - 1000 L/hr
- Design Pressure - 5 bar
- Material - FRP Polyglass
- Control - 3 Step auto working System
- Back Wash - By Water
- Filter Media - Grand Sand : 75 Liter/set
2nd Stage Media Filter
- Quantity - 1 Set
- Shape - Vertical Cylindrical
- Diameter - 13"(33 cm)
- Height - 54"(137 cm)
- Capacity per Unit - 1000 L/h
- Design Pressure - 5 bar
- Material - FRP Polyglass
- Control - 3 Step auto working System
- Back Wash - By Water
- Filter Media - GAC : 75 liter/set
5 Unit 5 Micro Housing and Filter
- Quantity - 1 Set (include 5 set Micro Filter)
- No of Vessel - 5
- Material - PVC
- Accessories - Pressure Gauge
Feed Pump (Submersible)
- Quantity - 1 Set
- Material - 304 Steel
- Power - 220V, 50Hz, 372W (Single Phase)
- Brand - LEO
- Accessories - check valve, pressure switch and pressure gauge
UF (Ultra Filteration Unit)
- Number of Unit : 2 sets
- Membrane Material : Vinyl Polymer
- Inner and outer diameters of Hollow - diameter : 1.0mm/1.6mm
- Dimensions of membrane Module : 90 x 1175 mm
- Initial flux : 1500 l/H
- External Shape : Hollow Fiber
- Membrane fiber Type : Incite-out or outside in
- Area of membrane module : 4.2 m2
- Applicable Temperature : 5 - 45 Degree C
- Molecular Weight cut – off (MWCO) : 100.000 Daltons
- Characteristics of membrane Stricter : Hydrophilic double - compact layers
- Pre- filtration : 50 - 150 Um
- Max turbidity of inlet water : < 15NTU
- Filtration : Cross flow Filtration or dead end filtration
- Max inlet water Pressure : 0.40 Mpa
- Max pressure difference of Transmembrane : 0.2 Mpa
- Applicable pH range : 1 - 12
- Tolerable continuous Residual chlorine : 100 PPM
- Tolerable interval Residual Chlorine : 200 PPM
Application
- Can be use in process water and drinking water factory.
- Raw water need to be under 200 T.D.S for drinking water process. Our Company design and build UF Unit For many type of applications.
Service & Maintenance
- We can operate maintenance task on any water treatment technology within our scope of supply.
- Please do not hesitate to contact us for maintenance on your old equipment.
Installation
- We supervise installation and commission every single unit we provide, on client's request.
- We check and maintain our Machine and Water Treatment Solution 1 Time in 2 months.
